DELTA SPECIAL REGISTERS

DRIVER CABLE MITSUBISHI

DRIVER CABLE USB DIGITUS

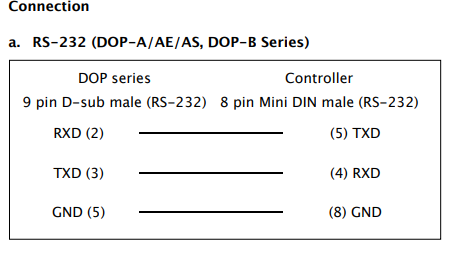

DRIVER CABLE DELTA

S7 SMART CLEAR

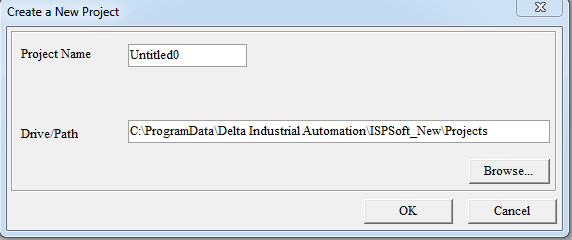

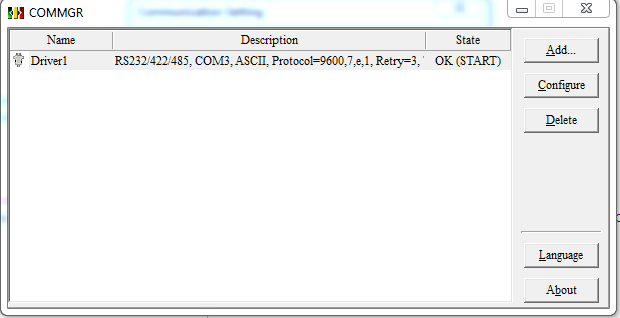

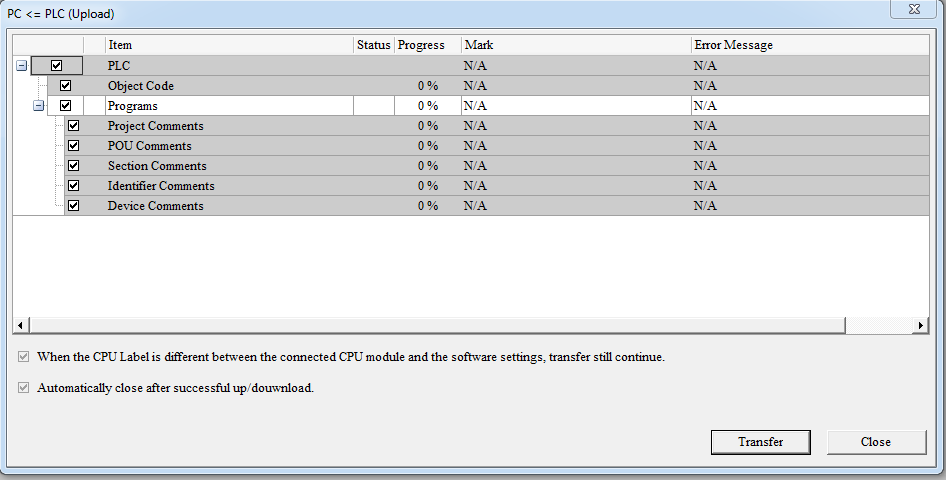

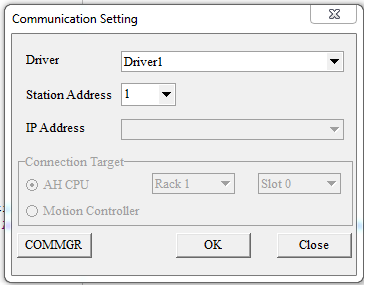

COPY/PASTE (Save as)

Register (word data) N/ADVP 28SV MEMORY MAP

Auxiliary relay

General purpose

M0 ~ M499, 500 points (*2)

Latched

M500 ~ M999, 500 points (*3)       M2000 ~ M4095, 2,096 points (*3)

Special purpose M1000 ~ M1999, 1,000 points (part for latched)

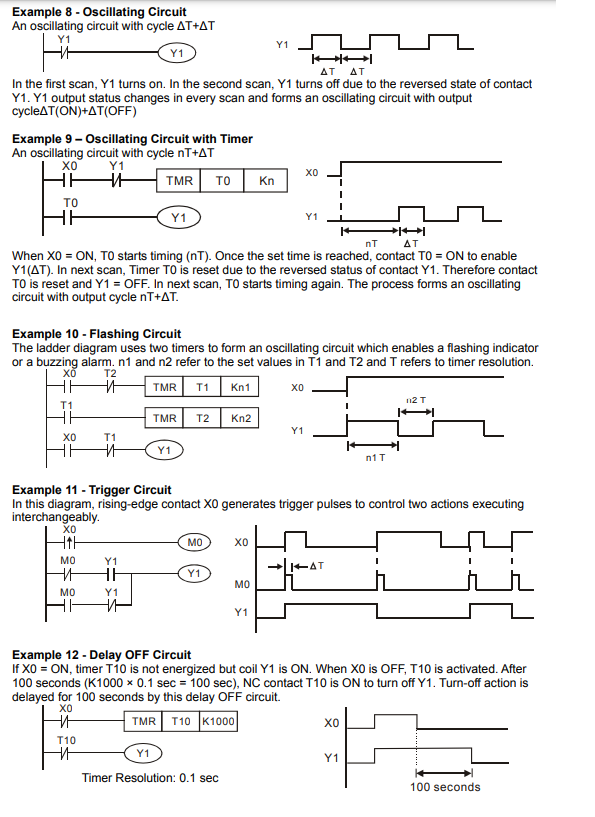

Timer

T0 ~ T199, 200 points (*2) 100 ms  can be modified into latched area by parameters.*

T192 ~ T199 for subroutine

T250 ~ T255, 6 accumulative points (*4) 10 ms cannot be modified

T200 ~ T239, 40 points (*2) can be modified into latched area by setting up parameters.*

T240 ~ T245, 6 accumulative points (*4) 1 ms cannot be modified

T246 ~ T249, 4 accumulative points (*4) cannot be modified

Total 256 points

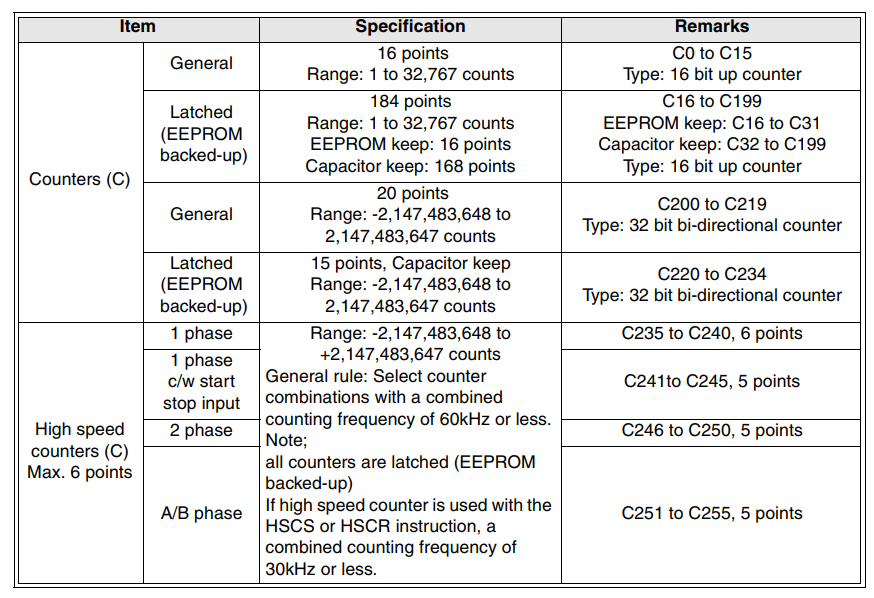

Counter 16-bit

C0 ~ C99, 100 points (*2) counting up

C100 ~ C199, 100 points (*3)

Counte 32-bit counting

C200 ~ C219, 20 points (*2) up/down (DCNT)

C220 ~ C234, 15 points (*3) (DCNT)

C235 ~ C244, 1 phase 1 input, 10 points (*3) (DCNT)

C246 ~ C249, 1 phase 2 inputs, 4 points (*3) (DCNT)

32-bit high-speed counting up/down (DCNT)

C251 ~ C254, 2 phase 2 inputs, 4 points (*3) (DCNT)

Total 253 points

Step points

Initial S0 ~ S9, 10 points (*2)

For zero return S10 ~ S19, 10 points, used with IST instruction (*2)

General purpose S20 ~ S499, 480 points (*2)

Latched S500 ~ S899, 400 points (*3)

For alarm S900 ~ S1023, 124 points (*3)

Total 1,024 points Used for SFC

Latched area setup

Start: D1214（K500） End: D1215（K899）

Data register

General purpose D0 ~ D199, 200 points (*2)

Latched D200 ~ D999, 800 points (*3) D2000 ~ D9999, 8,000 points (*3)

Special purpose D1000 ~ D1999, 1,000 points

For Indirect indication E0 ~ E7, F0 ~ F7, 16 points (*1)

Total 10,000 points

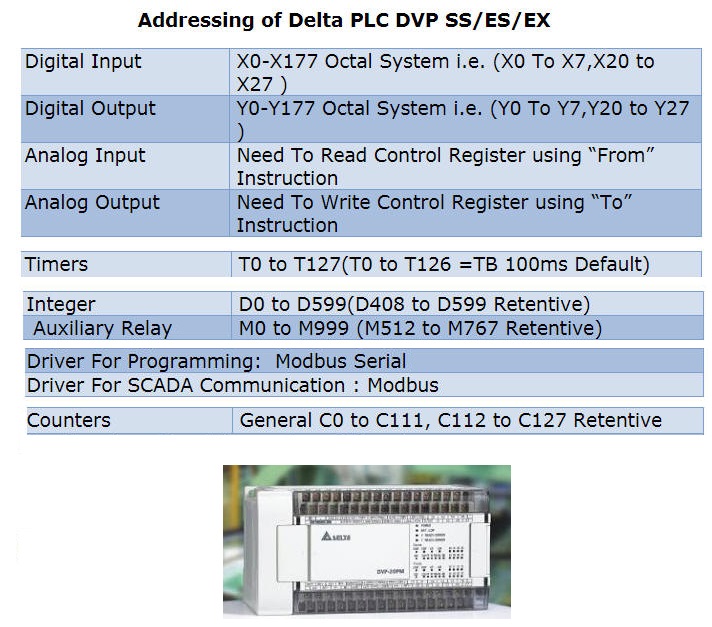

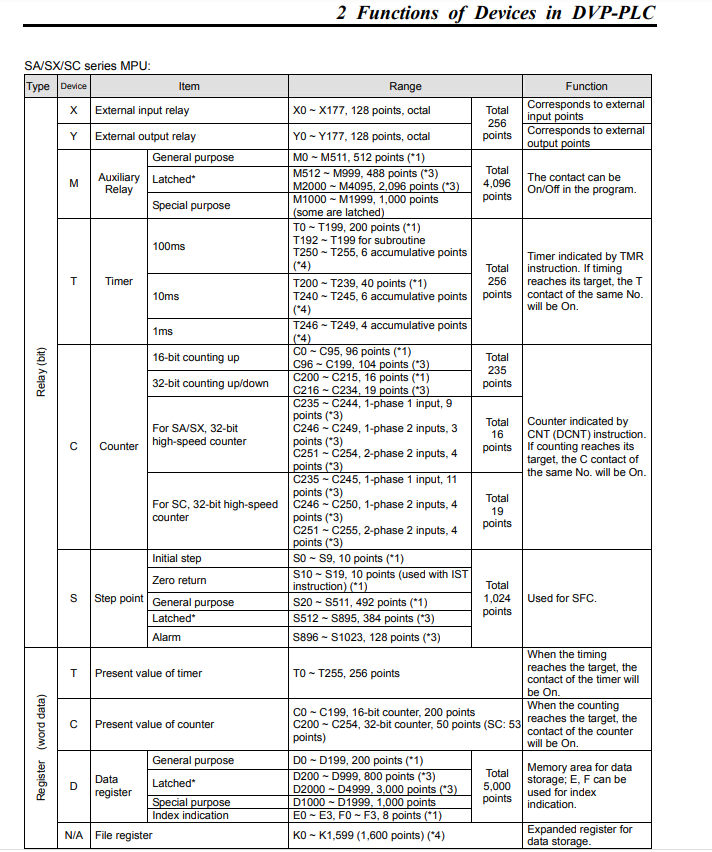

DVP SS2 MEMORY MAP

Specifications

Control Method

Stored program, cyclic scan system

I/O Processing Method

Batch processing method (when END instruction is executed)

Execution Speed

LD instructions – 0.54ls, MOV instructions – 3.4ls

Program language

Instruction List + Ladder + SFC

Program Capacity

7920 steps

Bit Contacts

X

External inputs

X0~X377, octal number system, 256 points max.

Total 480+14 I/O(*4)

Y

External outputs

Y0~Y377, octal number system, 256 points max.

M

Auxiliary relay

General

M0~M511, 512 points, (*1) M768~M999, 232 points, (*1) M2000~M2047, 48 points, (*1)

Total 4096 points

Latched

M512~M767, 256 points, (*2) M2048~M4095, 2048 points, (*2)

Special

M1000~M1999, 1000 points, some are latched

T

Timer

100ms (M1028=ON, T64~T126: 10ms)

T0~T126, 127 points, (*1) T128~T183, 56 points, (*1)

Total 256 points

T184~T199 for Subroutines, 16 points, (*1)

T250~T255(accumulative), 6 points (*1)

10ms (M1038=ON, T200~T245: 1ms)

T200~T239, 40 points, (*1)

T240~T245(accumulative), 6 points, (*1)

1ms

T127, 1 points, (*1) T246~T249(accumulative), 4 points, (*1)

C

Counter

16-bit count up

C0~C111, 112 points, (*1) C128~C199, 72 points, (*1)

Total 233 points

C112~C127, 16 points, (*2)

32-bit count up/down

C200~C223, 24 points, (*1)

C224~C232, 9 points, (*2)

32bit high-speed count up/down

Software Hardware

C235~C242, 1 phase 1 input, 8 points, (*2)

Total 22 points

C233~C234, 2 phase 2 input, 2 points, (*2)

C243~C244, 1 phase 1 input, 2 points, (*2)

C245~C250, 1 phase 2 input, 6 points, (*2)

C251~C254 2 phase 2 input, 4 points, (*2)

S

Step point

Initial step point

S0~S9, 10 points, (*2)

Total 1024 points

Zero point return

S10~S19, 10 points (use with IST instruction), (*2)

Latched

S20~S127, 108 points, (*2)

General

S128~S911, 784 points, (*1)

Alarm

S912~S1023, 112 points, (*2)

Word Register

T

Current value

T0~T255, 256 words

C

Current value

C0~C199, 16-bit counter, 200 words

C200~C254, 32-bit counter, 55 words

Specifications

D

Data register

General

D0~D407, 408 words, (*1) D600~D999, 400 words, (*1) D3920~D4999, 1080 words, (*1)

Total 5000 points

Latched

D408~D599, 192 words, (*2) D2000~D3919, 1920 words, (*2)

Special

D1000~D1999, 1000 words, some are latched

Index

E0~E7, F0~F7, 16 words, (*1)

Pointer

N

Master control loop

N0~N7, 8 points

P

Pointer

P0~P255, 256 points

I

Interrupt Service

External interrupt

I000/I001(X0), I100/I101(X1), I200/I201(X2), I300/I301(X3), I400/I401(X4), I500/I501(X5), I600/I601(X6), I700/I701(X7), 8 points (01: rising-edge trigger , 00: falling-edge trigger )

Timer interrupt

I602~I699, I702~I799, 2 points (Timer resolution = 1ms) I805~I899, 1 point (Timer resolution = 0.1ms) (Supported by V2.00 and above)

High-speed counter interrupt

I010, I020, I030, I040, I050, I060, I070, I080, 8 points

Communication interrupt

I140(COM1), I150(COM2), 2 points, (*3)

Constant

K

Decimal

K-32,768 ~ K32,767 (16-bit operation), K-2,147,483,648 ~ K2,147,483,647 (32-bit operation)

H

Hexadecimal

H0000 ~ HFFFF (16-bit operation), H00000000 ~HFFFFFFFF (32-bit operation)

Serial ports

COM1: built-in RS-232 ((Master/Slave) COM2: built-in RS-485 (Master/Slave) COM1 is typically the programming port.

Real Time Clock

Year, Month, Day, Week, Hours, Minutes, Seconds

Special I/O Modules

Up to 8 special I/O modules can be connected



2.1 ES2 / EX2 / EC2 Memory Map

Specifications
Control Method Stored program, cyclic scan system
I/O Processing Method Batch processing method (when END instruction is executed)
Execution Speed LD instructions – 0.54ls, MOV instructions – 3.4ls
Program language Instruction List + Ladder + SFC
Program Capacity 15872 steps
Bit Contacts X External inputs X0~X377, octal number system, 256 points max, (*4) Total 256+16 I/O
Y External outputs Y0~Y377, octal number system, 256 points max, (*4)
M Auxiliary relay General M0~M511, 512 points, (*1) M768~M999, 232 points, (*1) M2000~M2047, 48 points, (*1) Total 4096 points
Latched M512~M767, 256 points, (*2) M2048~M4095, 2048 points, (*2)
Special M1000~M1999, 1000 points, some are latched
T Timer 100ms (M1028=ON, T64~T126: 10ms) T0~T126, 127 points, (*1) T128~T183, 56 points, (*1) Total 256 points
T184~T199 for Subroutines, 16 points, (*1)
T250~T255(accumulative), 6 points (*1)
10ms (M1038=ON, T200~T245: 1ms) T200~T239, 40 points, (*1)
T240~T245(accumulative), 6 points, (*1)
1ms T127, 1 points, (*1) T246~T249(accumulative), 4 points, (*1)
C Counter 16-bit count up C0~C111, 112 points, (*1) C128~C199,72 points, (*1) Total 232 points
C112~C127,16 points, (*2)
32-bit count up/down C200~C223, 24 points, (*1)
C224~C231, 8 points, (*2)
32bit high-speed count up/down Software Hardware C235~C242, 1 phase 1 input, 8 points, (*2) Total 23 points
C232~C234, 2 phase 2 input, 3 points, (*2)
C243~C244, 1 phase 1 input, 2 points, (*2)
C245~C250, 1 phase 2 input, 6 points, (*2)
C251~C254 2 phase 2 input, 4 points, (*2)
S Step point Initial step point S0~S9, 10 points, (*2) Total 1024 points
Zero point return S10~S19, 10 points (use with IST instruction), (*2)
Latched S20~S127, 108 points, (*2)
General S128~S911, 784 points, (*1)
Alarm S912~S1023, 112 points, (*2)
Word Register T Current value T0~T255, 256 words
C Current value C0~C199, 16-bit counter, 200 words
C200~C254, 32-bit counter, 55 words
Specifications
D Data register General D0~D407, 408 words, (*1) D600~D999, 400 words, (*1) D3920~D9999, 6080 words, (*1) Total 10000 points
Latched D408~D599, 192 words, (*2) D2000~D3919, 1920 words, (*2)
Special D1000~D1999, 1000 words, some are latched
For Special mudules D9900~D9999炻100 words, (*1), (*5)
Index E0~E7, F0~F7, 16 words, (*1)
Pointer N Master control loop N0~N7, 8 points
P Pointer P0~P255, 256 points
I Interrupt Service External interrupt I000/I001(X0), I100/I101(X1), I200/I201(X2), I300/I301(X3), I400/I401(X4), I500/I501(X5), I600/I601(X6), I700/I701(X7), 8 points (01: rising-edge trigger , 00: falling-edge trigger )
Timer interrupt I602~I699, I702~I799, 2 points (Timer resolution = 1ms) I805~I899, 1 point (Timer resolution = 0.1ms) (Supported by V2.00 and above)
High-speed counter interrupt I010, I020, I030, I040, I050, I060, I070, I080,8 points
Communication interrupt I140(COM1), I150(COM2), I160(COM3), 3 points, (*3)
Constant K Decimal K-32,768 ~ K32,767 (16-bit operation), K-2,147,483,648 ~ K2,147,483,647 (32-bit operation)
H Hexadecimal H0000 ~ HFFFF (16-bit operation), H00000000 ~HFFFFFFFF (32-bit operation)
Serial ports COM1: built-in RS-232 ((Master/Slave) COM2: built-in RS-485 (Master/Slave) COM3: built-in RS-485 (Master/Slave) COM1 is typically the programming port. Ethernet(*8): built-in Ethernet, refer to appendix B for more details on operation
Real Time Clock(*6) Year, Month, Day, Week, Hours, Minutes, Seconds
Special I/O Modules Up to 8 special I/O modules can be connected
File Register(*2) K0~K4999, 5000 points K0~K7999, 8000 points (*9)
 When input points(X) are expanded to 256 points, only 16 output points(Y) are applicable. Also, when ouput points(Y) are expanded to 256 points, only 16 input points(X) are applicable.

This area is applicable only when the ES2/EX2 MPU is connected with special I/O modules. Every special I/O module occupies 10 points.

PLC with firmware version 2.00 or later support the function of keeping track of the current even after the power is off. When the power is off, this function can go on for about 1 week.

PLC with firmware version 2.00 or later versions support the function of file register. Refer to the instructions MEMR/MEMW for more details on operation.

Ethernet: this function is only available for DVP-EX2-E series PLC.

This function is available for ES2 and EX2 series with firmware V3.46 or later and for EX2-E series with firmware V1.08 or later.

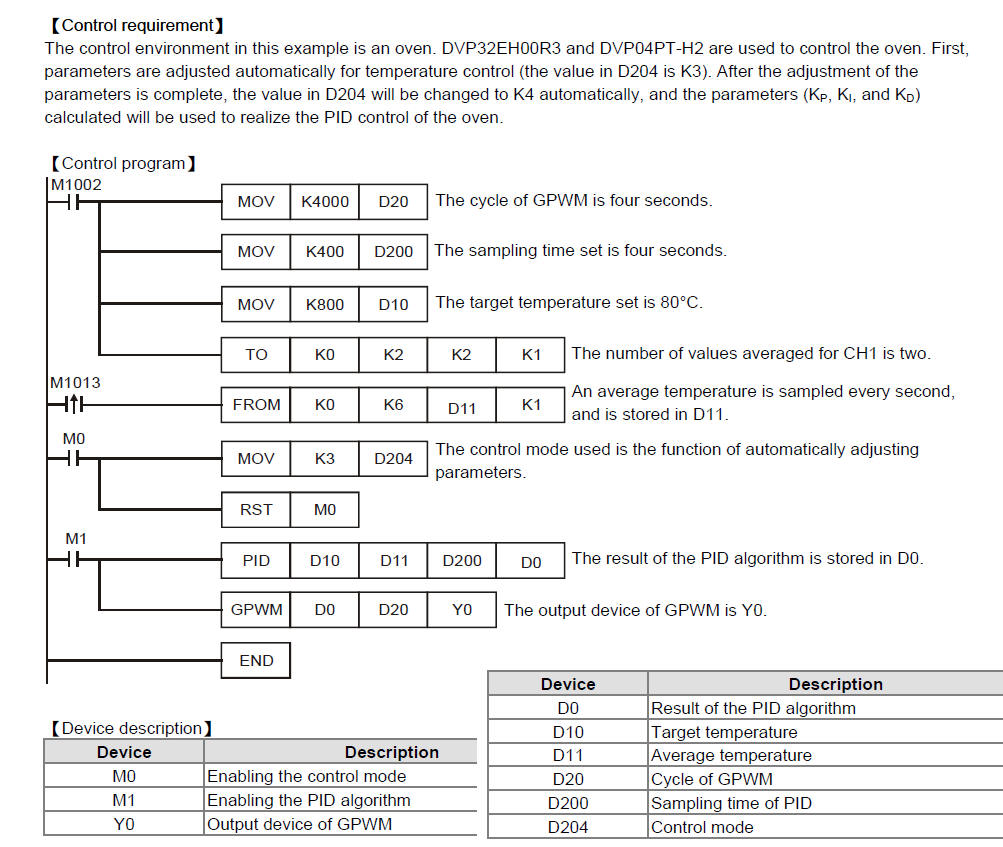

DELTA PLC PID CONTROL

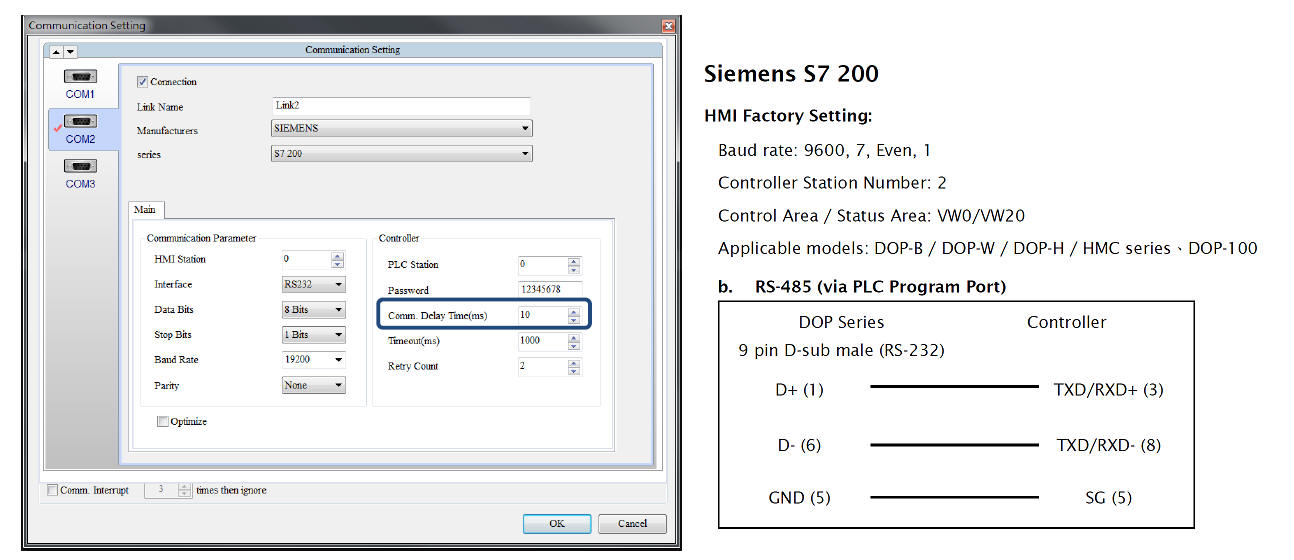

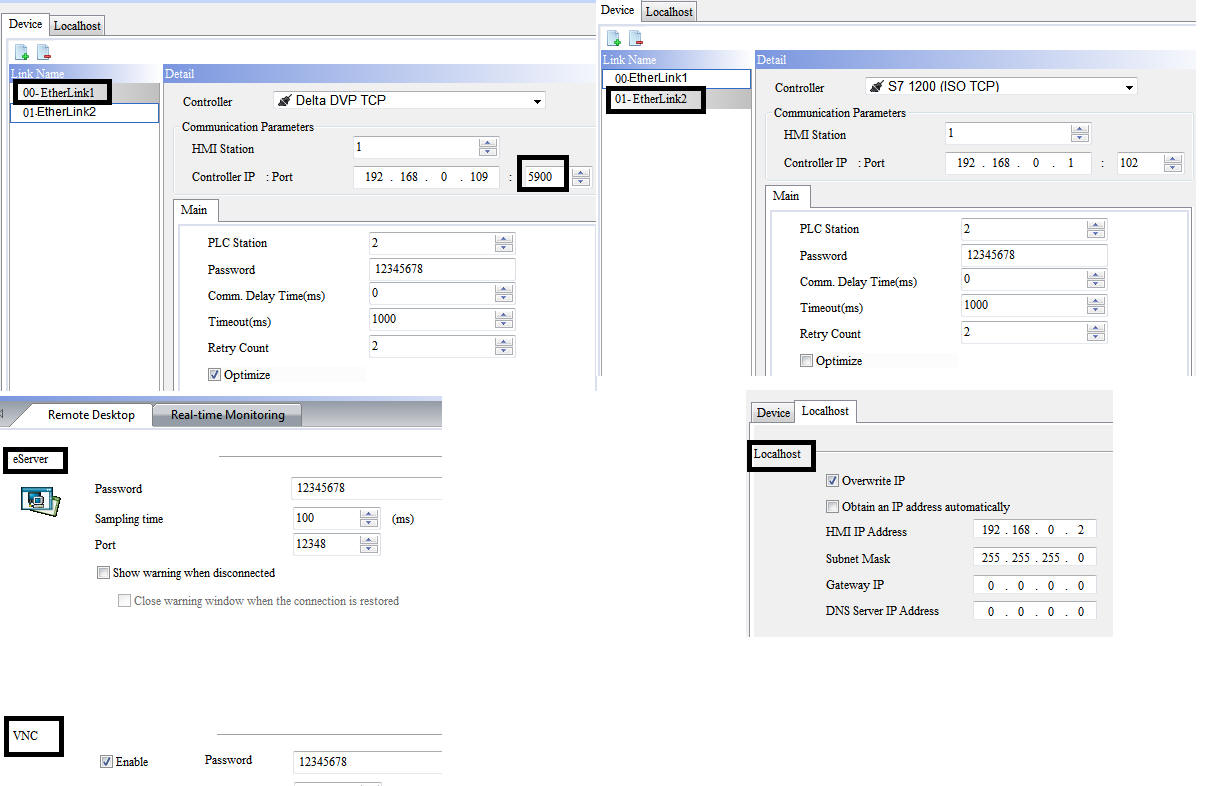

Дистанционен достъп до DOP-100 серия може да се направи с VNC viewer.
https://www.realvnc.com/en/connect/download/viewer/
Настройка в дисплея за позволение на достъп и активен порт – в приложеният PDF - страница 221.

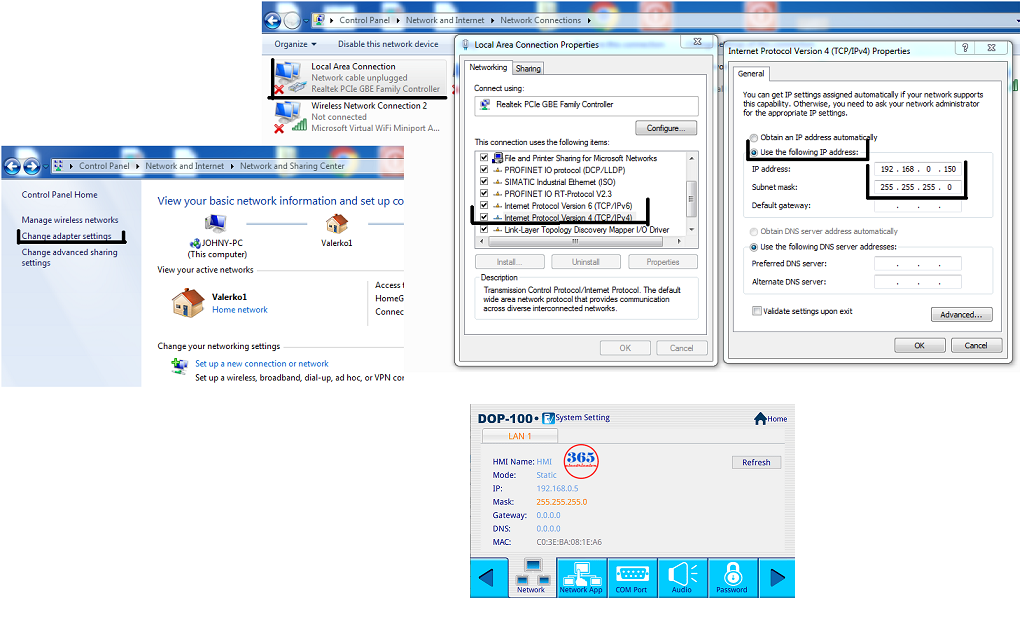

Настройка във VNC viewer за връзка с дисплея – целеви IP : Port 192.168.0.109:5900

Компютъра се свързва с кабел към мрежовия суич,стартира се VNC VIEWER  и ANYDESK, а на телефона само ANYDESK.

От телефона се влиза в компютъра с ANYDESK и се командва дисплея през VNC.
